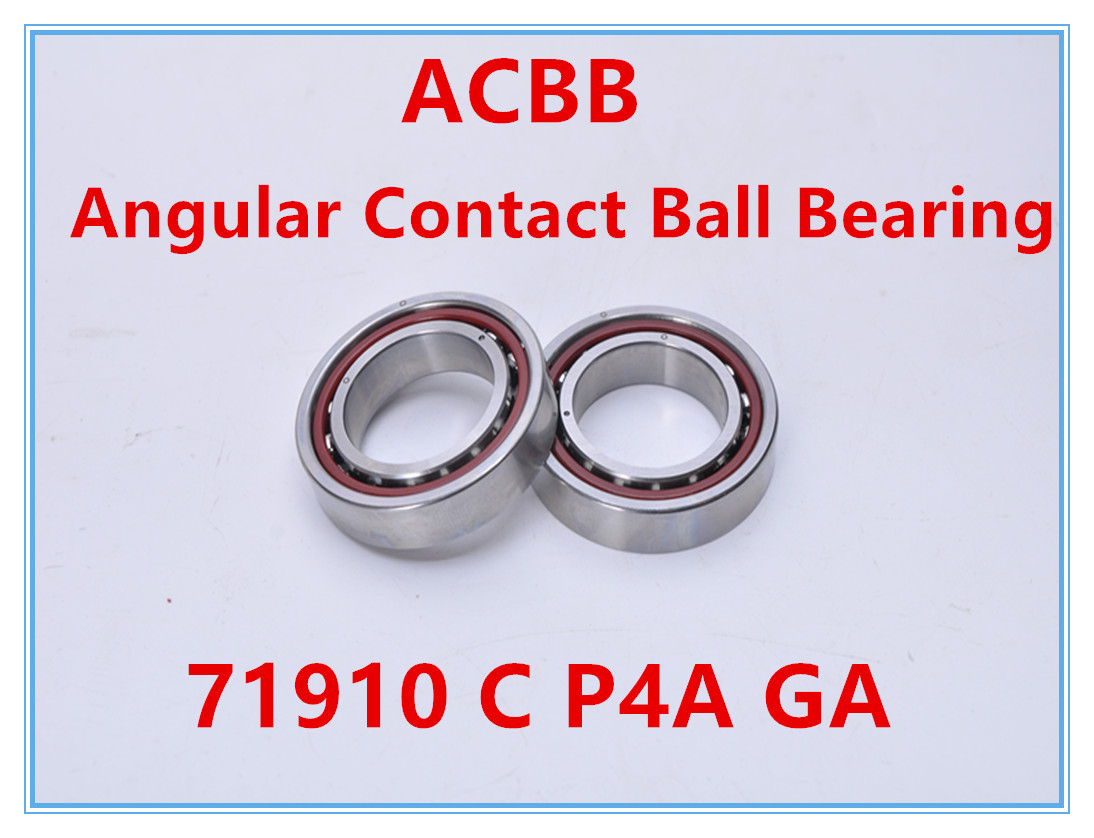

71910 C P4A GA Angular Contact Ball Bearing

Ask Lasest Price
Brand Name :	ACBB
Model Number :	71910 C P4A GA
Certification :	ISO9001 IATF16949

Add to Cart

Product Details
Company Profile

71910 C P4A GA Angular Contact Ball Bearing

Angular contact ball bearing 71910 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on high-speed motor spindles. The operating speed reaches 15000 to 18000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

719 Series Angular Contact Ball Bearing
Bearing No	Dimensions(mm)			rsmin	rs1min	(KN) BasicRatedload		(RPM) Ball speed limit		(RPM) Ceramic Ball limit speed		(N) Preload
Bearing No	d	D	B	rsmin	rs1min	Cr	Cor	Grease Lubrication	Oil Lubrication	Grease Lubrication	Oil Lubrication	A	B	C
71904C	20	37	9	0.30	0.30	7.35	4.55	38000	56000	50000	75000	41	137	297
71904AC	20	37	9	0.30	0.30	6.95	4.40	36000	53000	43000	63000	38	172	390
71905C	25	42	9	0.30	0.30	8.15	5.70	32000	48000	43000	63000	40	141	326
71905AC	25	42	9	0.30	0.30	7.80	5.50	30000	45000	36000	53000	40	189	430
71906C	30	47	9	0.30	0.30	8.65	6.55	28000	43000	36000	53000	42	158	345
71906AC	30	47	9	0.30	0.30	8.15	6.30	26000	40000	32000	48000	40	194	445
71907C	35	55	10	0.60	0.60	11.80	9.50	24000	38000	32000	48000	61	209	481
71907AC	35	55	10	0.60	0.60	11.00	9.00	22000	36000	26000	40000	61	276	619
71908C	40	62	12	0.60	0.60	17.60	13.70	22000	36000	28000	43000	85	300	633
71908AC	40	62	12	0.60	0.60	16.60	13.20	20000	34000	24000	38000	112	450	984
71909C	45	68	12	0.60	0.60	18.60	15.60	19000	32000	24000	38000	89	315	667
71909AC	45	68	12	0.60	0.60	17.60	15.00	18000	30000	22000	36000	116	473	1038
71910C	50	72	12	0.60	0.60	19.00	16.60	18000	30000	22000	36000	90	321	679
71910AC	50	72	12	0.60	0.60	18.00	15.60	16000	26000	20000	34000	118	482	1059
