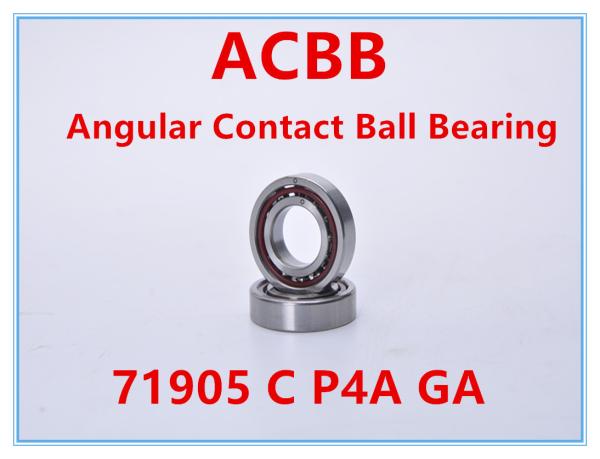

71905 C P4A GA Angle Contact Ball Bearing 32000RPM-36000RPM

Ask Lasest Price
Brand Name :	ACBB
Model Number :	71905 C P4A GA
Certification :	ISO9001 IATF16949

Add to Cart

Product Details
Company Profile

71905 C P4A GA Angle Contact Ball Bearing 32000RPM-36000RPM

Angular contact ball bearing 71905 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on high-speed motor spindles. The operating speed reaches 32000 to 36000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

719 Series Angular Contact Ball Bearing
Bearing No	Dimensions(mm)			rsmin	rs1min	(KN) BasicRatedload		(RPM) Ball speed limit		(RPM) Ceramic Ball limit speed		(N) Preload
Bearing No	d	D	B	rsmin	rs1min	Cr	Cor	Grease Lubrication	Oil Lubrication	Grease Lubrication	Oil Lubrication	A	B	C
71900C	10	22	6	0.30	0.30	3.00	1.53	70000	110000	90000	15000	15	52	115
71900AC	10	22	6	0.30	0.30	2.90	1.46	63000	95000	75000	12000	17	65	150
71901C	12	24	6	0.30	0.30	3.35	1.86	60000	90000	80000	130000	15	56	126
71901AC	12	24	6	0.30	0.30	3.20	1.76	56000	85000	67000	100000	19	67	162
71902C	15	28	7	0.30	0.30	5.00	2.90	50000	75000	67000	100000	20	77	167
71902AC	15	28	7	0.30	0.30	4.80	2.75	48000	70000	56000	85000	22	112	259
71903C	17	30	7	0.30	0.30	5.30	3.15	48000	70000	60000	90000	21	81	176
71903AC	17	30	7	0.30	0.30	5.00	3.00	43000	63000	50000	75000	23	116	268
71904C	20	37	9	0.30	0.30	7.35	4.55	38000	56000	50000	75000	41	137	297
71904AC	20	37	9	0.30	0.30	6.95	4.40	36000	53000	43000	63000	38	172	390
71905C	25	42	9	0.30	0.30	8.15	5.70	32000	48000	43000	63000	40	141	326
71905AC	25	42	9	0.30	0.30	7.80	5.50	30000	45000	36000	53000	40	189	430
71906C	30	47	9	0.30	0.30	8.65	6.55	28000	43000	36000	53000	42	158	345
71906AC	30	47	9	0.30	0.30	8.15	6.30	26000	40000	32000	48000	40	194	445
