71808 C P4A GA

Ask Lasest Price
Brand Name :	ACBB
Model Number :	71808 C P4A GA
Certification :	ISO9001 IATF16949

Add to Cart

Product Details
Company Profile

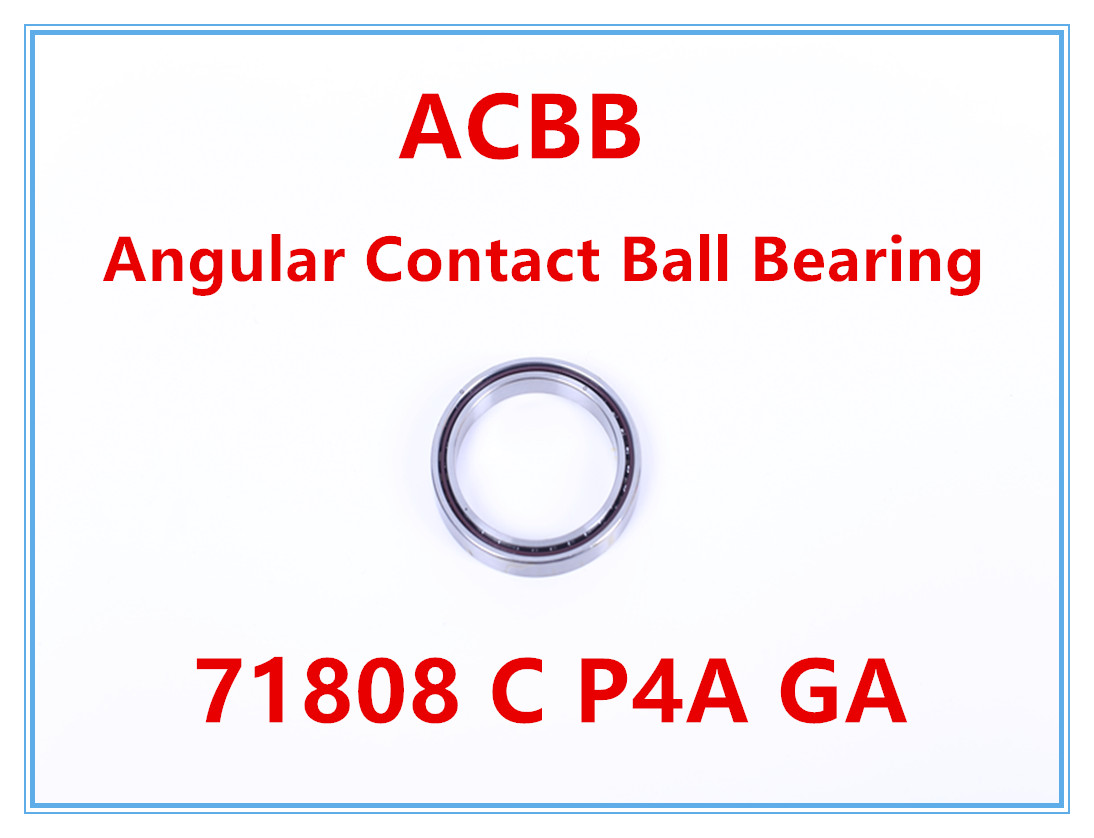

71808 C P4A GA

Angular Contact Ball Bearing 71808 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on high-speed motor spindles. The operating speed reaches 22000 to 24000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

718 Series Angular Contact Ball Bearing
Bearing No	Dimensions(mm)			rsmin	rs1min	(KN) BasicRatedload		(RPM) Ball speed limit		(RPM) Ceramic Ball limit speed		(N) Preload
Bearing No	d	D	B	rsmin	rs1min	Cr	Cor	Grease Lubrication	Oil Lubrication	Grease Lubrication	Oil Lubrication	A	B	C
71804C	20	32	7	0.30	0.10	3.80	2.65	43000	63000	53000	80000	15	50	114
71804AC	20	32	7	0.30	0.10	3.65	2.50	38000	56000	45000	67000	18	70	174
71805C	25	37	7	0.30	0.10	4.15	3.20	36000	53000	45000	67000	16	54	123
71805AC	25	37	7	0.30	0.10	3.90	3.00	32000	48000	38000	56000	18	72	181
71806C	30	42	7	0.30	0.10	4.40	3.65	30000	45000	38000	56000	16	56	129
71806AC	30	42	7	0.30	0.10	4.15	3.40	28000	43000	34000	50000	18	73	189
71807C	35	47	7	0.30	0.10	4.65	4.15	26000	40000	34000	50000	17	58	135
71807AC	35	47	7	0.30	0.10	4.40	3.80	24000	38000	30000	45000	19	76	197
71808C	40	52	7	0.30	0.10	4.80	4.55	24000	38000	30000	45000	17	59	138
71808AC	40	52	7	0.30	0.10	4.55	4.25	22000	36000	26000	40000	17	75	200

71808 C P4A GA
