Double Sided Seal Self Aligning Ball Bearing 1200-1220

Ask Lasest Price
Brand Name :	ACBB
Model Number :	1200-1220/1300-1320/2200-2220/2300-2320 Series Four Point Contact Ball Bearing
Certification :	ISO9001 IATF16949

Add to Cart

Product Details
Company Profile

Double Sided Seal Self Aligning Ball Bearing 1200-1220

Self-aligning ball bearing, mainly plays the role of Automatic Adjustment Angle. At present we produce 12 series, 13 series, 22 series, 23 series bearings. Cage with iron cage, PA66 NYLON CAGE, copper cage and so on. At present, we also produce 12 series, 22 series with double-ring self-aligning ball bearings. Bore with taper (1:12) . The self-aligning ball bearings are widely used in textile machinery, chemical fiber machinery, agricultural machinery equipment.

Self-aligning Ball Bearing
Bearing No			Dimensions(mm)			(KN)		(r/min) Limitsd Speed		(Kg)
Cylindrical holes	Taper Hole	Double Seal	d	D	B	Cr	Cor	脂Grease	油Oil	Mass
1200	1200K	1200 2RS	10	30	9	5.50	1.19	21000	24000	0.033
1201	1201K	1201 2RS	12	32	10	5.60	1.27	18000	22000	0.040
1202	1202K	1202 2RS	15	35	11	7.45	1.75	16000	19000	0.049
1203	1203K	1203 2RS	17	40	12	7.90	2.01	14000	17000	0.072
1204	1204K	1204 2RS	20	47	14	9.90	2.61	13000	15000	0.116
1205	1205K	1205 2RS	25	52	15	12.10	3.30	11000	13000	0.138
1206	1206K	1206 2RS	30	62	16	15.60	4.65	9200	11000	0.217
1207	1207K	1207 2RS	35	72	17	15.80	5.10	8000	9400	0.317
1208	1208K	1208 2RS	40	80	18	19.30	6.55	7100	8400	0.414
1209	1209K	1209 2RS	45	85	19	21.90	7.35	6400	7500	0.448
1210	1210K	1210 2RS	50	90	20	22.70	8.10	5800	6800	0.504
1211	1211K	1211 2RS	55	100	21	26.80	10.00	5300	6200	0.679
1212	1212K	1212 2RS	60	110	22	30.00	11.50	4900	5800	0.864
1213	1213K	1213 2RS	65	120	23	31.00	12.50	4500	5300	1.110
1214	1214K	1214 2RS	70	125	24	34.50	13.80	4200	4900	1.240
1215	1215K	1215 2RS	75	130	25	39.00	15.70	3900	4600	1.310
1216	1216K	1216 2RS	80	140	26	40.00	17.00	3700	4300	1.620
1217	1217K	1217 2RS	85	150	28	49.00	20.80	3500	4100	2.030
1218	1218K	1218 2RS	90	160	30	57.00	23.50	3300	3800	2.510
1219	1219K	1219 2RS	95	170	32	64.00	27.10	3100	3600	3.050
1220	1220K	1220 2RS	100	180	34	69.00	29.70	2900	3400	3.640
1300	1300K	1300 2RS	10	35	11	7.25	1.62	18000	21000	0.058
1301	1301K	1301 2RS	12	37	12	9.45	2.16	16000	18000	0.066
1302	1302K	1302 2RS	15	42	13	9.55	2.30	13000	16000	0.092
1303	1303K	1303 2RS	17	47	14	12.50	3.20	12000	14000	0.128
1304	1304K	1304 2RS	20	52	15	12.40	3.35	11000	13000	0.158
1305	1305K	1305 2RS	25	62	17	18.00	5.00	9100	11000	0.251
1306	1306K	1306 2RS	30	72	19	21.30	6.30	7700	9100	0.377
1307	1307K	1307 2RS	35	80	21	25.10	7.85	6800	8000	0.492
1308	1308K	1308 2RS	40	90	23	29.60	9.70	6000	7000	0.698
1309	1309K	1309 2RS	45	100	25	38.00	12.70	5400	6300	0.938
1310	1310K	1310 2RS	50	110	27	43.50	14.10	4900	5800	1.180
1311	1311K	1311 2RS	55	120	29	51.50	17.90	4500	5200	1.560
1312	1312K	1312 2RS	60	130	31	57.00	20.80	4100	4800	1.930
1313	1313K	1313 2RS	65	140	33	62.00	22.90	3800	4500	2.380
1314	1314K	1314 2RS	70	150	35	74.50	27.70	3500	4200	2.990
1315	1315K	1315 2RS	75	160	37	79.50	30.00	3300	3900	3.500
1316	1316K	1316 2RS	80	170	39	88.50	33.00	3100	3600	4.110
1317	1317K	1317 2RS	85	180	41	97.50	38.00	2900	3400	4.890
2200	2200K	2200 2RS	10	30	14	7.30	1.59	19000	23000	0.047
2201	2201K	2201 2RS	12	32	14	7.60	1.73	17000	20000	0.051
2202	2202K	2202 2RS	15	35	14	7.70	1.85	15000	18000	0.060
2203	2203K	2203 2RS	17	40	16	9.80	2.41	13000	16000	0.088
2204	2204K	2204 2RS	20	47	18	12.60	3.30	12000	14000	0.140
2205	2205K	2205 2RS	25	52	18	12.30	3.45	10000	12000	0.157
2206	2206K	2206 2RS	30	62	20	15.20	4.50	8600	10000	0.256
2207	2207K	2207 2RS	35	72	23	21.50	6.60	7500	8800	0.392
2208	2208K	2208 2RS	40	80	23	22.30	7.35	6700	7900	0.493
2209	2209K	2209 2RS	45	85	23	23.20	8.15	6000	7100	0.540
2210	2210K	2210 2RS	50	90	23	23.20	8.45	5500	6400	0.583
2211	2211K	2211 2RS	55	100	25	26.50	9.90	5000	5800	0.787
2212	2212K	2212 2RS	60	110	28	34.00	12.60	4600	5400	1.080
2213	2213K	2213 2RS	65	120	31	43.50	16.40	4200	5000	1.440
2214	2214K	2214 2RS	70	125	31	44.00	17.10	3900	4600	1.520
2215	2215K	2215 2RS	75	130	31	44.50	17.80	3700	4300	1.580
2216	2216K	2216 2RS	80	140	33	48.50	19.90	3400	4000	1.990
2217	2217K	2217 2RS	85	150	36	58.00	23.60	3200	3800	2.540
2218	2218K	2218 2RS	90	160	40	70.00	28.70	3100	3600	3.190
2219	2219K	2219 2RS	95	170	43	83.50	34.50	2900	3400	3.890
2220	2220K	2220 2RS	100	180	46	94.00	38.50	3700	3200	4.650
2300	2300K	2300 2RS	10	35	17	10.10	2.15	17000	20000	0.083
2301	2301K	2301 2RS	12	37	17	11.80	2.71	15000	17000	0.092
2302	2302K	2302 2RS	15	42	17	12.00	2.90	13000	15000	0.114
2303	2303K	2303 2RS	17	47	19	14.40	3.55	11000	14000	0.156
2304	2304K	2304 2RS	20	52	21	18.10	1.70	10000	12000	0.201
2305	2305K	2305 2RS	25	62	24	24.40	6.60	8500	10000	0.326
2306	2306K	2306 2RS	30	72	27	31.50	8.75	7200	8500	0.485
2307	2307K	2307 2RS	35	80	31	39.50	11.30	6300	7400	0.653
2308	2308K	2308 2RS	40	90	33	45.00	13.50	5600	6600	0.895
2309	2309K	2309 2RS	45	100	36	54.00	16.70	5000	5900	1.200
2310	2310K	2310 2RS	50	110	40	64.50	20.20	4600	5400	1.590
2311	2311K	2311 2RS	55	120	43	75.50	24.00	4200	4900	2.050
2312	2312K	2312 2RS	60	130	46	87.00	28.20	3800	4500	2.520
2313	2313K	2313 2RS	65	140	48	96.00	32.50	3600	4200	3.120
2314	2314K	2314 2RS	70	150	51	109.00	37.50	3300	3900	3.920
2315	2315K	2315 2RS	75	160	55	123.00	43.00	3100	3600	4.660
2316	2316K	2316 2RS	80	170	58	128.00	45.00	2900	3400	5.510
2317	2317K	2317 2RS	85	180	60	140.00	51.50	2700	3200	6.390

Note: Bearings Are Also Available In Aisi 440C Stainless Steel.

Note: Bearings Are Designed Nylon Or Steel Cage.

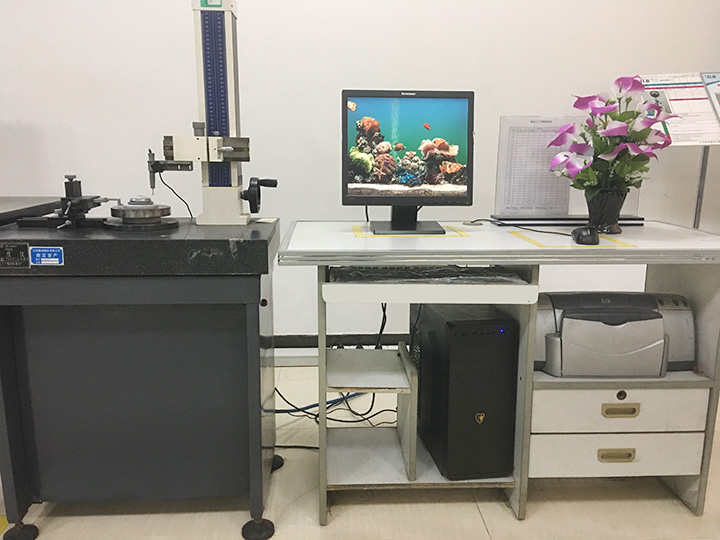

Detection Instrument
