35TAC72B P4 GB Thrust Angular Contact Ball Bearing

Ask Lasest Price
Brand Name :	ACBB
Model Number :	35TAC72B P4 GB
Certification :	ISO9001 IATF16949

Add to Cart

Product Details
Company Profile

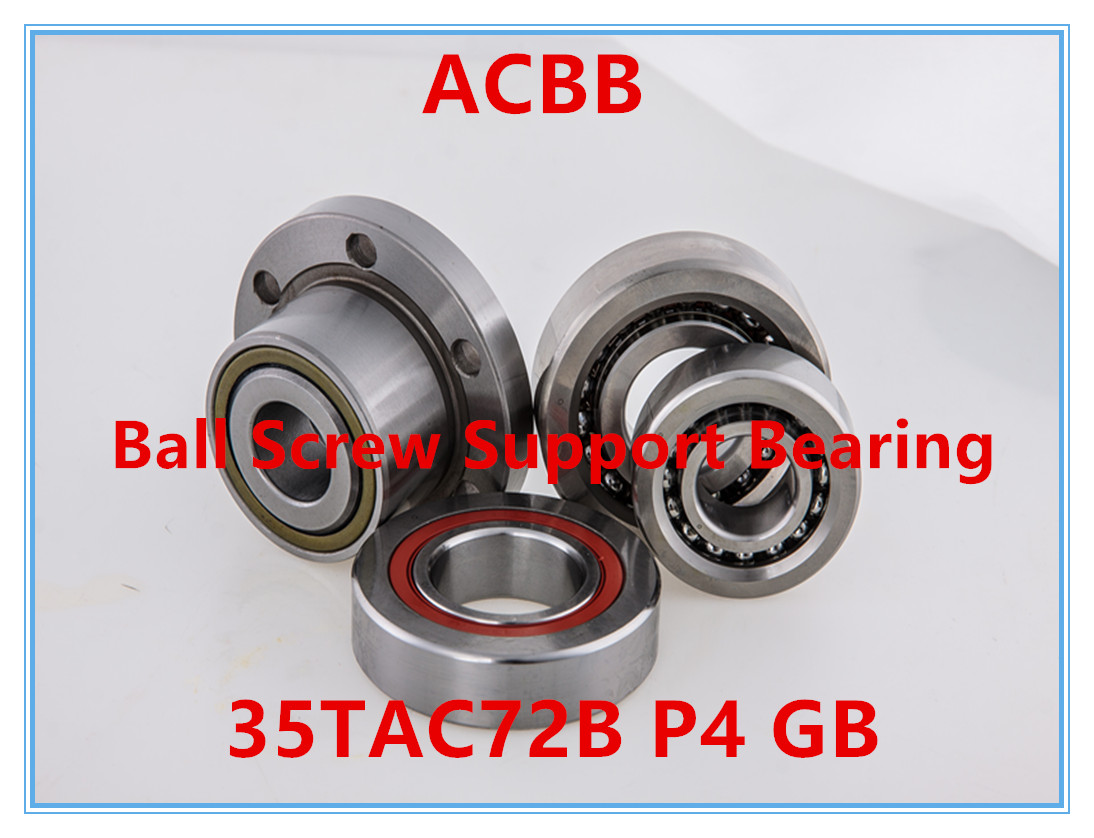

35TAC72B P4 GB Thrust Angular Contact Ball Bearing

Thrust Angular Contact Ball Bearing 35TAC72B P4 GB is applied to the machine tool lead screw drive to quickly, efficiently and accurately position a workpiece or machine part. In order to meet these needs, ACB B ultra-precision thrust angular contact ball bearing can be used for the machine tool lead screw drive. Use a 60 degree contact angle. The ball screw support bearing has the characteristics of high rigidity, high precision and large axial load. In order to meet the needs of customers, we have designed ball screw bearing with sealing structure.

Ball Screw Support Bearing
Bearing No		Dimensions(mm)					(KN)		(r/min) Limitsd Speed		(Kg)
Bearing No		d	D	B	rsmin	rs1min	Cr	Cor	Grease	Oil	Mass
BSB015047	15TAC47B	15	47	15	1.0	1.0	21.5	27.0	12000	17000	0.14
BSB017047	17TAC47B	17	47	15	1.0	1.0	21.5	27.0	11000	15000	0.14
BSB020047	20TAC47B	20	47	15	1.0	1.0	19.3	25.0	10000	14000	0.17
BSB025062	25TAC62B	25	62	15	1.0	1.0	28.5	41.5	9000	13000	0.24
BSB030062	30TAC62B	30	62	15	1.0	1.0	26.0	39.0	8500	12000	0.27
BSB030072	30TAC72B	30	72	15	1.0	1.1	31.0	54.0	8000	11000	0.35
BSB035072	35TAC72B	35	72	15	1.0	1.1	30.0	50.0	7500	10000	0.30
BSB040072	40TAC72B	40	72	15	1.0	1.1	28.0	49.0	7000	9000	0.26
BSB040090	40TAC90B	40	90	20	1.5	1.5	50.0	83.0	6300	8500	0.65
BSB045075	45TAC75B	45	75	15	1.0	1.0	28.5	52.0	6000	8000	0.26
BSB045100	45TAC100B	45	100	20	1.5	1.5	58.5	104.0	5600	7500	0.81
BSB050100	50TAC100B	50	100	20	1.5	1.5	58.5	104.0	5000	7000	0.75
BSB055090	55TAC90B	55	90	15	1.0	1.0	32.5	65.5	4800	6500	0.38
BSB055100	55TAC100B	55	100	20	1.5	1.5	40.5	81.5	4400	6200	0.75
BSB055120	55TAC120B	55	120	20	1.5	2.0	60.0	116.0	4000	6000	1.18
BSB060120	60TAC120B	60	120	20	1.5	1.5	61.0	120.0	3800	5500	1.11
